2-MP 1/2.8" CMOS image sensor, low illuminance, high image definition. ? Outputs max. 2 MP (1920 ? 1080) @25/30 fps. ? H.265 codec, high compression rate, ultra-low bit rate. ? Built-in efficient IR illuminator, and the max. illumination distance is 30 m. ? ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments. ? Rotation mode, DWDR, 3D NR, HLC, BLC, digital

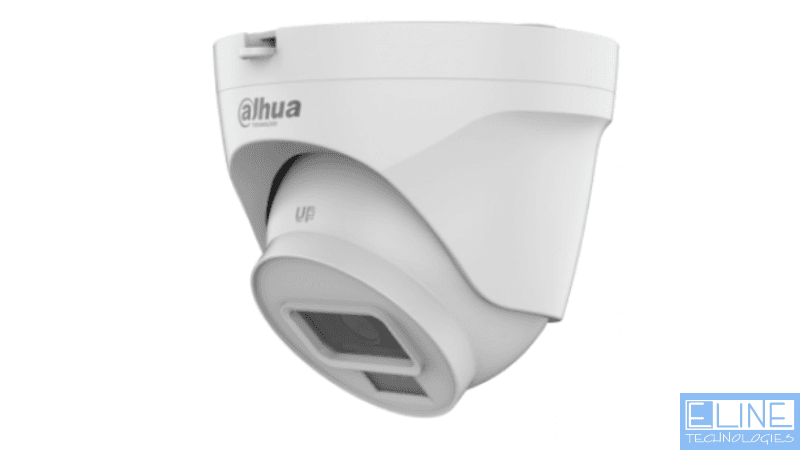

DH-IPC-HDW1230T2-S5

Name: DH-IPC-HDW1230T2-S5
SKU: 20628
Availability: OutOfStock

රු 16,260

2-MP 1/2.8″ CMOS image sensor, low illuminance, high image definition. ? Outputs max. 2 MP (1920 ? 1080) @25/30 fps. ?
H.265 codec, high compression rate, ultra-low bit rate. ? Built-in efficient IR illuminator, and the max. illumination distance is
30 m. ? ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments. ?
Rotation mode, DWDR, 3D NR, HLC, BLC, digital

Out of stock

Categories: CCTV, Dahua Tags: cctv, Dahua, Security Camera

Description
Reviews (0)

DH-IPC-HDW1230T2P-28B

Product Selector

Camera

Image Sensor

1/2.8" CMOS

Max. Resolution

1920 (H) × 1080 (V)

ROM

16 MB

RAM

64 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.01 lux@F2.0 (Color, 30 IRE)0.001 lux@F2.0 (B/W, 30 IRE)0 lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

UP to 30 m (98.4 ft) (IR)

Illuminator On/Off Control

Auto; manual

Illuminator Number

Pan/Tilt/Rotation Range

2 (IR LED)

Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm;

Max. Aperture

2.8 mm: F2.0

Field of View

2.8 mm: Horizontal: 102°; Vertical: 54°; Diagonal:120°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.5 m (1.6 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

38.6 m

(126.6 ft)

15.4 m

(50.5 ft)

7.7 m

(25.3 ft)

3.9 m

(12.8 ft)

Video

Video Compression

H.265; H.264; H.264B;

; H.264H

MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream:1920 × 1080@1–25/30 fps

Sub stream:

704 × 576@1–25 fps

704 × 480@1–30 fps

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

DWDR

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Alarm

Alarm Event

Network disconnection; IP conflict; illegal access; motion detection; video tampering; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; Generation and importing of X.509 certification; Trusted boot; Trusted upgrade; Trusted execution

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS;NTP; Multicast; ICMP; IGMP;

Interoperability

ONVIF (Profile S); CGI; P2P

User/Host

6 (Total bandwidth: 36 M)

Storage

FTP

Browser

IE
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS
