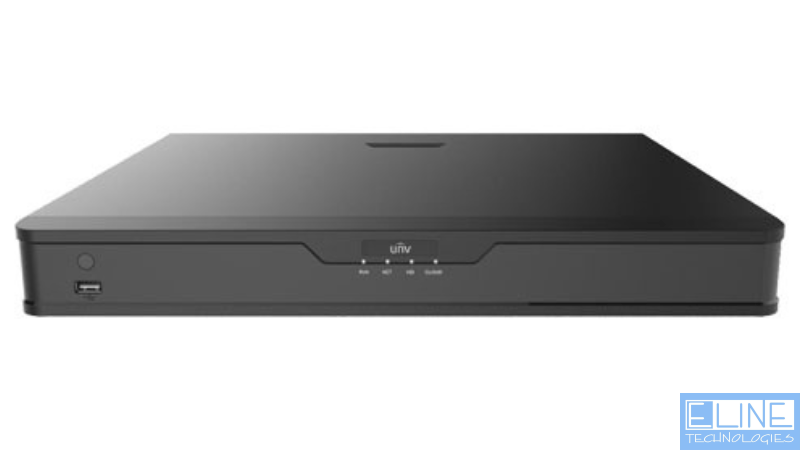

NVR302-16S2
රු 47,487
- Uniview
- NVR for IP cameras
- Easy range
- 16 CH
- 160 Mbps bandwidth supported
- Maximum resolution 8 Megapixel
- Compression Ultra265/H.265/H.264
- Alarms
- VGA and HDMI 4K output
- Mouse
- Space for 2 HDD up to 10 TB – 16 PoE ports IEEE802.3af/at
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
| Decoding | Description |
| DecodingFormat | Ultra 265, H.265, H.264 |
| DecodingCapability | NVR302‑09S2:2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 9 x 1080P@25 NVR302‑16S2:2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30 |
| AudioCompression | G.711A, G.711U |
| Network | Description |
| IncomingBandwidth | 160Mbps |
| OutgoingBandwidth | 64Mbps |
| RemoteUsers | 128 |
| Protocols | TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;RTSP |
| Browser(Plugin) | Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above) |
| Video/AudioInput | Description |
| IPVideoInput | NVR302‑09S2:9‑ch NVR302‑16S2:16‑ch |
| RCAAudioInput | 1‑ch |
| Video/AudioOutput | Description |
| HDMIOutput | HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| VGAOutput | VGA:1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| RCAAudioOutput | 1‑ch |
| LiveviewDisplay | NVR302‑09S2:1/4/6/8/9 NVR302‑16S2:1/4/6/8/9/16 |
| CorridorModeScreen | NVR302‑09S2:3/4/5/7/9 NVR302‑16S2:3/4/5/7/9/10/12/16 |
| Two-wayAudio | Description |
| Two-wayAudio | 1‑ch, RCA(Using the audio input and output) |
| Snapshot | Description |
| FTP/Schedule/EventSnapshot | 4‑ch snapshot, up to D1 resolution |
| Recording | Description |
| RecordingResolution | 8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| SynchronousPlaybackinLocal | NVR302‑09S2:9‑ch NVR302‑16S2:16‑ch |
| Smart | Description |
| VCADetectionbyIPC | Face Detection;SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD);People Counting(People Flow Counting, Crowd Density Monitoring) |
| VCASearch | Motor Vehicle Search;Non‑Motor Vehicle Search;Human Body Search;General Search;People Counting Report |
| SmartbyIPC | Total 8‑ch(Face Detection, SIP, UMD) |
| Alarm | Description |
| GeneralAlarm | Defocus Detection;Scene Change Detection;Object Left Behind;Object Removed;Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection |
| AlertAlarm | IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal |
| HardDisk | Description |
| SATA | 2 SATA Interfaces |
| Capacity | Up to 10TB for each HDD(The maximum HDD capacity varies with environment temperature) |
| ExternalInterface | Description |
| NetworkInterface | 2 RJ45 10M/100M/1000M self‑adaptive Ethernet Interface |
| USB | Front panel: 1 x USB2.0;Rear panel: 1 x USB3.0, 1 x USB2.0 |
| RS485 | N/A |
| RS232 | N/A |
| AlarmIn | N/A |
| AlarmOut | N/A |
| PowerSupply | DC 12V/3A |
| PowerSwitch | Support |
| WorkingEnvironment | Description |
| WorkingTemperature | ‑10 °C ~ 55 °C (14 °F ~ 131 °F) |
| WorkingHumidity | ≤ 90% RH (non‑condensing) |
| PowerConsumption(withoutHDD) | ≤ 15W |
| Dimensions | Description |
| Weight(withoutHDD) | ≤ 2.48Kg (5.47lb) |
| Dimensions | 380mm × 315mm ×53mm (15.0"×12.4"×2.1") |
| Certification | Description |
| Certification | CE;FCC;UL;RoHS;WEEE |
| CE | EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035 |
| FCC | Part15 Subpart B |
